XDR Search lets you find specific data in the Sophos Data Lake.

You can search for indicators of compromise (IOCs) or for other data such as IP addresses or usernames.

You can create searches in two different ways:

  • Create a basic search by using our search builder. This is the default.
  • Create an advanced search by using the query language Lucene or free text entry.

For instructions, select the appropriate tab below.

Basic searches are simple to create.

You create a basic search by using our interactive Search Builder.

  1. Go to Threat Analysis Center > Search.

    Search page.

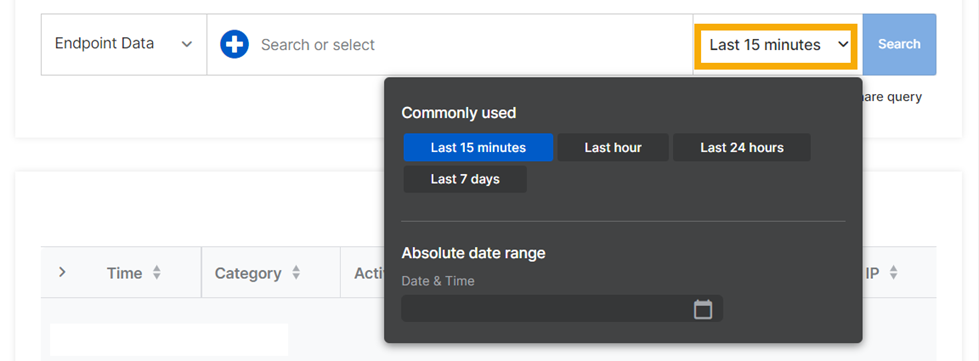

  2. Select a time range for the detections you want to search.

    Search time range.

  3. Select the data you want to search. Currently, you can only search Endpoint Data.

    Search data.

  4. In the search bar, click the Add icon to see commonly used search fields.

    Add icon.

  5. In the Commonly used dialog, click a field.

    Commonly used fields.

  6. In Search Builder, use the drop-down menu to add an operator such as IS or INCLUDES, and enter a value.

    For example: Device IP IS

    Search builder.

  7. Optionally, click Row to select an operator (AND, OR, or NOT) and add another field. Then click Add.

    For example: hostname IS sys1 OR hostname IS sys2 AND protocol IS RDP

  8. Optionally, select the data fields you want to see in your results. Click Columns and select the fields you want.

    Search columns selector.

  9. Click Search. You see results in the lower pane.

    Search results.

  10. To see the full details of a detection, click the arrow beside it.

Currently, you can't save your searches or take actions on the detections in the results.

You can create an advanced search by using the query language Lucene or by entering your own text.

To create an advanced search, do as follows:

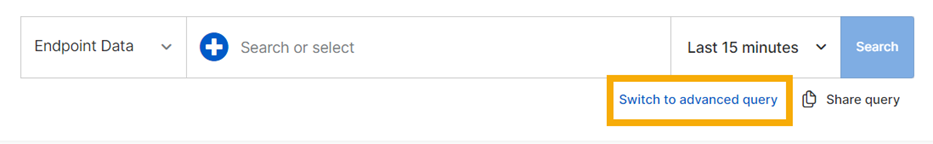

  1. Click Switch to advanced query.

    Switch to advanced query.

  2. In the Search bar, enter data fields plus parameters, or free text, as described in the sections below.

  3. Click Search. You see the results in the lower pane.

Use data fields plus parameters

Enter the data field followed by a colon and then the search parameter. For full details of the data fields you can use, see Data fields for Search.

You can create searches with multiple data fields. Here are some examples:

process_name:lsass AND username:admin OR username:system

sha256:794cf7644115198db451431bca7c89ff9a97550482b1e3f7f13eb7aca6120a11 AND dest_ip:""

For help, see Lucene tutorial.

Use free text entry

Enter a string of text to find detections that include the entered text. For strings like MAC addresses or IP addresses, which include special characters, use quotation marks in free text searches.

Here are some examples:




Configure the results list

You can either accept the default columns shown in results or change and reorder them.

Default columns

By default the following columns are shown in results.

Column Details
time -
category For example, "network"
activity_type For example, "open sockets"
hostname -
username Not shown if no user is signed in, for example on a server
device_IP -

Add or remove columns

You can change and reorder the columns of data shown in the results. To change the columns shown, click Columns and select the columns you want.

Select columns.

Reorder columns

To change the order of columns in the results table, do as follows:

  1. Click a column header and drag it to the place you want.

    Move column.

  2. When you see arrows above and below the table header, you can drop the column header there.

    Insert column.
