Query switch data using Live Discover

You can query device data from Sophos Switches managed in Sophos Central using Live Discover in the Threat Analysis Center. Live Discover lets you use SQL queries to get more granular data than the data on the Switch management page. For example, you can query all devices connected to a specific switch.

To use Live Discover for Sophos Switch, go to Threat Analysis Center > Live Discover and click Switch. Live Discover has some built-in Data Lake queries for Sophos Switch. You can use these queries, edit them, or create new ones. To edit these queries or create new ones, turn on Designer Mode.

Note

If you're creating a new query for Sophos Switch, select Data Lake as the Source.

For information about how to use Live Discover, see Live Discover.

Data Lake schema

To see the available tables and data, open the Data Lake schema in the schema viewer.

To open the schema viewer, do as follows:

  1. Go to Threat Analysis Center > Live Discover and click Switch.
  2. Make sure Designer Mode is turned on.

  3. In the Query section, you can do as follows:

    • To edit a query, select the query you want to edit and click Edit.
    • To create a query, click Create new query.

  4. In the upper-right corner of the SQL dialog, click Schema.

    Open schema viewer.

    The schema viewer opens in a new tab.

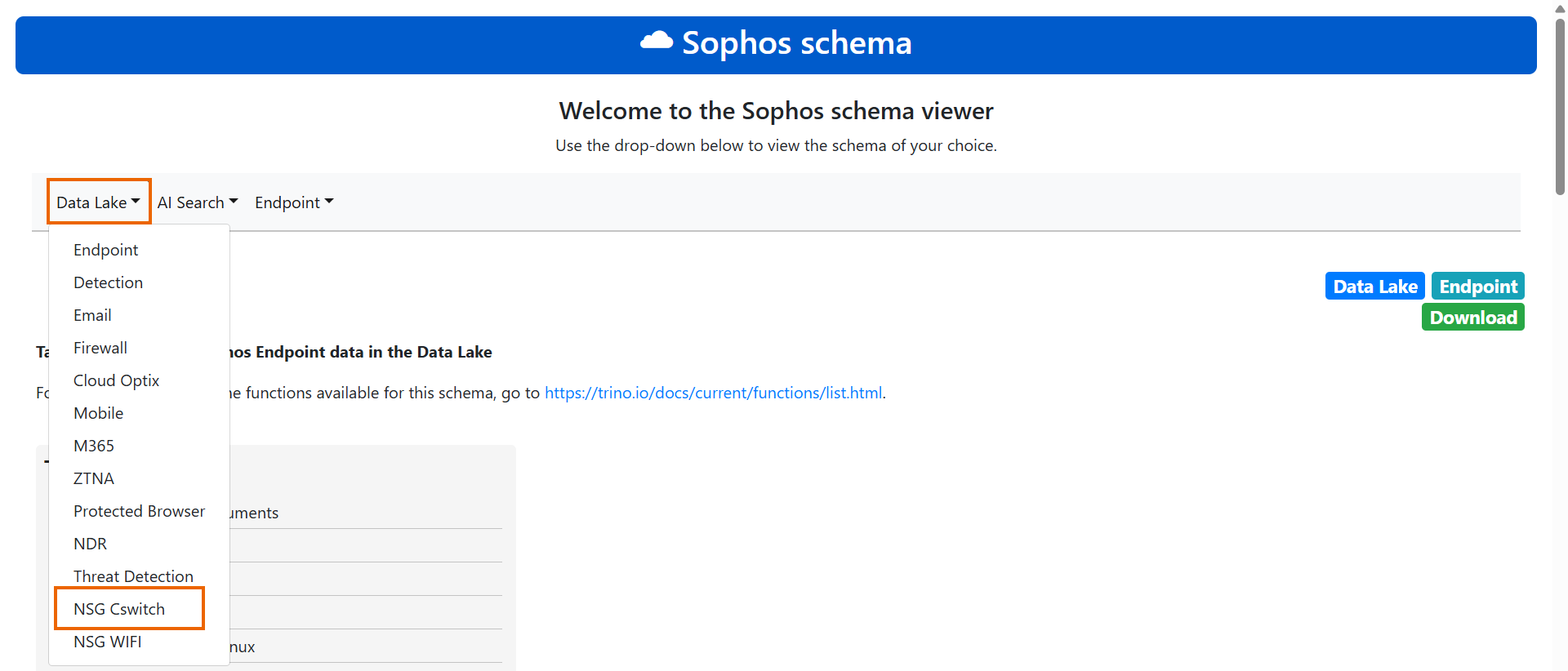

  5. For AP6 access points, select NSG Cswitch from the Data Lake drop-down list.

    Select the NSG Cswitch schema.

  6. Select nsg_cswitch_data.

Cswitch field names

The following table describes the Cswitch field names in the Data Lake:

Name Description
message_identifier Unique Identifier created by the ingestion pipeline
ingest_date Date when the data was ingested
ingestion_timestamp The epoch second when the data was ingested
schema_version The Data Lake Schema version
record_size The size of the data
customer_id The customer ID
type_of_data The data sent in the stream, such as client and log data
is_full_set Whether the data sent is a full set or incremental
timestamp The timestamp at which the event is generated
device_id The unique ID of the switch
device_name The name of the switch
device_model The model of the switch
device_firmware The switch's firmware version
device_serial_id The serial number of the switch
client_mac The MAC address of the connected device
client_ip The IP address of the connected device
client_hostname The hostname of the connected device
client_event_timestamp The timestamp when the device connected
client_conn_status The device's connection status
log_id The log ID
log_subtype The log subtype
log_component The log component
log_message The log message
log_severity The log severity
device_ip The IP address of the switch
device_port The port on the switch where the client is connected
client_vlan The VLAN the connected device is assigned to
direct_end_device Whether the device is directly connected to the switch
