IPsec VPN with firewall behind a router

You can configure IPsec VPN connections between firewalls behind a router. In this example, the head office firewall is behind a router and doesn't have a public IP address.

You must configure the following at the head office and the branch office:

1. Firewall prerequisite: Configure IP hosts for the local and remote subnets.
2. Configure the IPsec VPN connection.
3. Optional: Edit the automatically created firewall rule to create an independent rule for outbound traffic.
4. Optional: Create a firewall rule for inbound traffic if you want independent firewall rules.
5. Allow access to services.
6. Configure the router settings.
7. Check connectivity.
8. Check the logs.

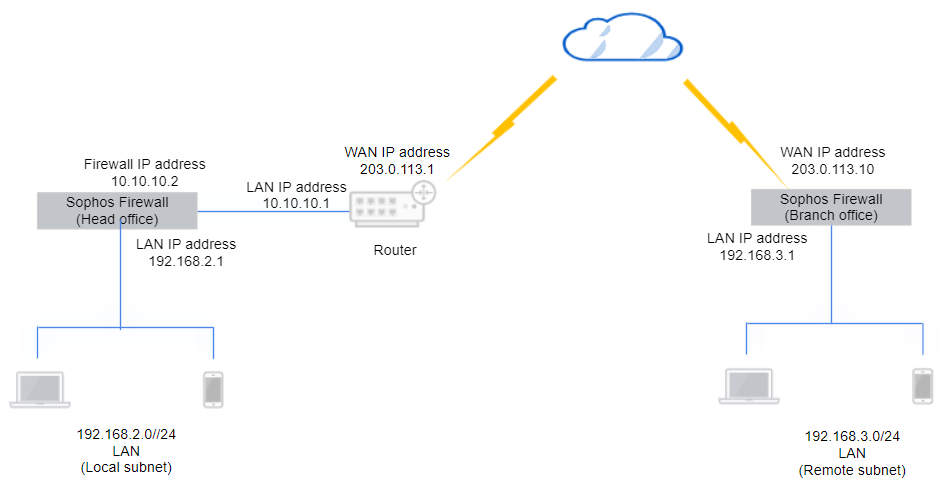

Here's an example network diagram:

Configure the head office firewall

Configure the IPsec connection and firewall rules.

Add an IPsec connection

Create and activate an IPsec connection at the head office.

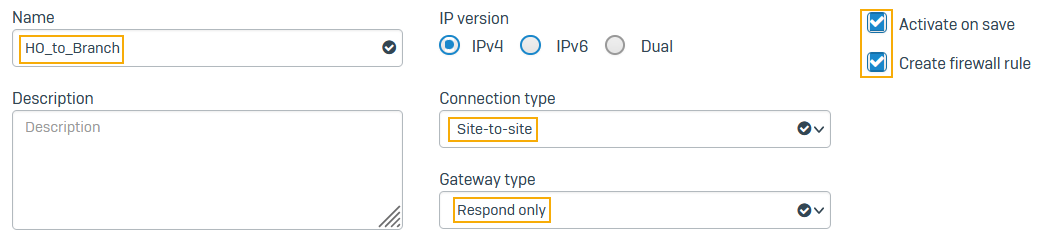

1. Go to VPN > IPsec connections and click Add.
2. Enter a name.
3. Select Activate on save.
4. Select Create firewall rule.
5. For Connection type, select Site-to-site.

6. For Gateway type, select Respond only.

   Here's an example:



7. For Profile, select DefaultHeadOffice.

8. For Authentication type, select Preshared key.

9. Enter a key and confirm it.

   Here's an example:

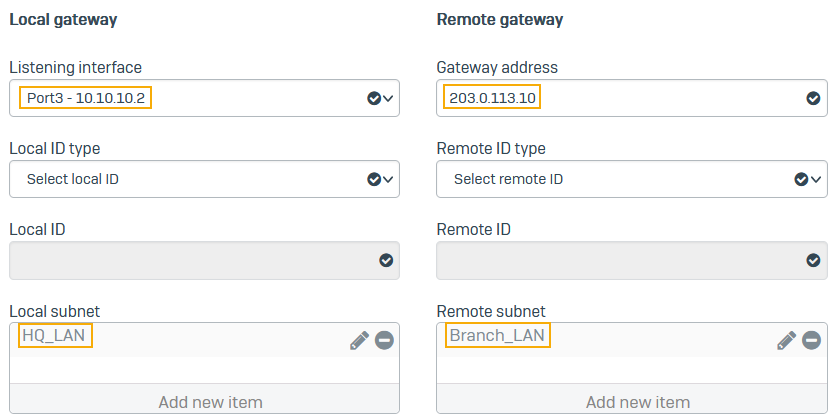

10. For Listening interface, select the local firewall's WAN port (example: 10.10.10.2).

11. For Gateway settings, enter the remote firewall's WAN port (example: 203.0.113.10).
12. For Local subnet, select the IP host you've created for 192.168.2.0.
13. For Remote subnet, select the IP host you've created for 192.168.3.0.

14. Click Save.

    Here's an example:



Edit the firewall rule

To configure an independent outbound VPN rule, edit the automatically created firewall rule. Alternatively, check the settings if you already have a firewall rule for VPN traffic.

1. Go to Rules and policies > Firewall rules.

2. Click the rule group Automatic VPN rules and click the rule you've created.

   Here's an example:



3. Specify the following settings:

   Option	Setting
   Rule name	Outbound VPN traffic
   Source zones	LAN
   Source networks and devices	HQ_LAN
   Destination zones	VPN
   Destination networks	Branch_LAN
   Services	Any

4. Click Save.

   Here's an example:



Add a firewall rule

Create a firewall rule for inbound VPN traffic if you don't have one.

1. Go to Rules and policies > Firewall rules.
2. Click Add firewall rule and select New firewall rule.

3. Specify the following settings:

   Option	Setting
   Rule name	Inbound VPN traffic
   Source zones	VPN
   Source networks and devices	Branch_LAN
   Destination zones	LAN
   Destination networks	HQ_LAN
   Services	Any

4. Click Save.

   Here's an example:



Allow access to services on the head office firewall

1. Go to Administration > Device access.
2. Under Ping/Ping6, select VPN.
   Users can ping the firewall's IP address through the VPN to check connectivity.
3. Click Apply.

Configure a DNAT rule on the router

Do as follows:

1. Make sure you configure a DNAT rule on the router to allow the VPN traffic:
   1. Set the original destination to the router's WAN interface (example: 203.0.113.1).
   2. Set the translated destination to the local firewall's WAN interface (example: 10.10.10.2).
2. Allow the following services:
   1. UDP port 500
   2. UDP port 4500
   3. IP protocol 50

Configure the branch office firewall

Configure the IPsec connection and firewall rules.

Add an IPsec connection

Create and activate an IPsec connection at the branch office.

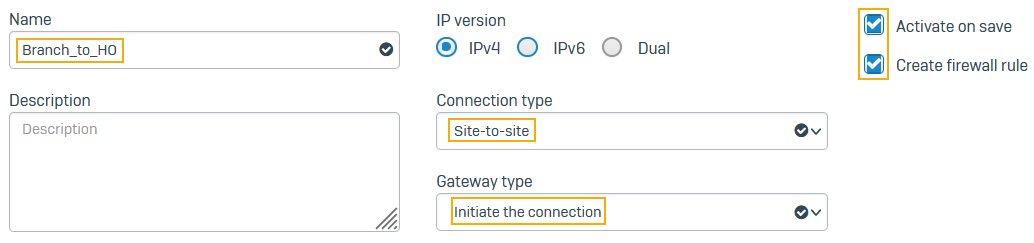

1. Go to VPN > IPsec connections and click Add.
2. Enter a name.
3. Select Activate on save.
4. Select Create firewall rule.
5. For Connection type, select Site-to-site.

6. For Gateway type, select Initiate the connection.

   Here's an example:

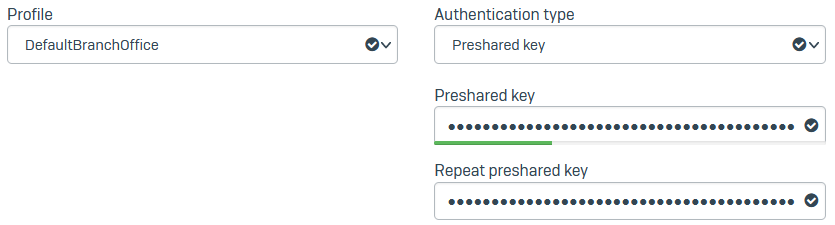

7. For Profile, select DefaultBranchOffice.

8. For Authentication type, select Preshared key.

9. Enter a key and confirm it.

   Here's an example:

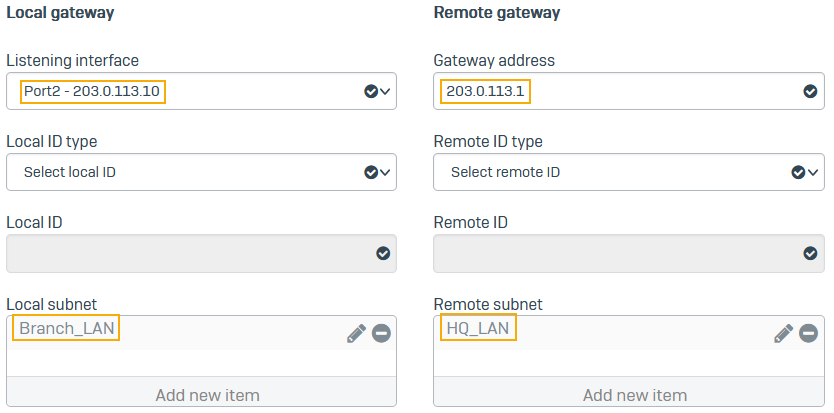

10. For Listening interface, select the local firewall's WAN port (203.0.113.10).

11. For Gateway settings, enter the head office router's WAN port (203.0.113.1).
12. For Local subnet, select the IP host you've created for 192.168.2.0.
13. For Remote subnet, select the IP host you've created for 192.168.3.0.

14. Click Save.



Edit the firewall rule

To configure an independent outbound VPN rule, edit the automatically created firewall rule. Alternatively, check the settings if you already have a firewall rule for VPN traffic.

1. Go to Rules and policies > Firewall rules.

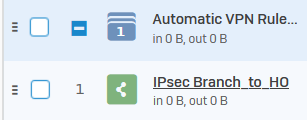

2. Click the rule group Automatic VPN rules and click the rule you've created.

   Here's an example:



3. Specify the following settings:

   Option	Setting
   Rule name	Outbound VPN traffic
   Source zones	LAN
   Source networks and devices	Branch_LAN
   Destination zones	VPN
   Destination networks	HQ_LAN
   Services	Any

4. Click Save.

   Here's an example:



Add a firewall rule

Create a rule for inbound VPN traffic if you don't already have one.

1. Go to Rules and policies > Firewall rules.
2. Click Add firewall rule and select New firewall rule.

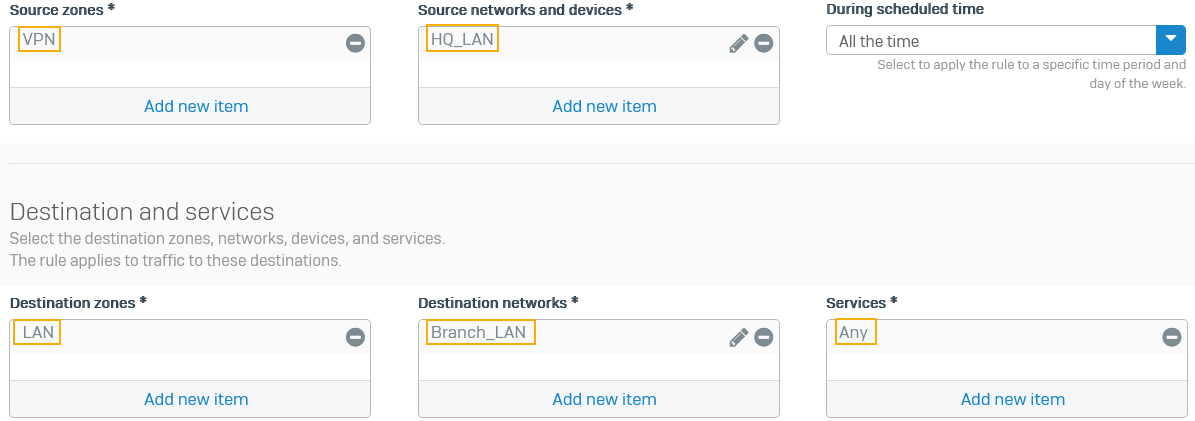

3. Specify the following settings:

   Option	Setting
   Rule name	Inbound VPN traffic
   Source zones	VPN
   Source networks and devices	HQ_LAN
   Destination zones	LAN
   Destination networks	Branch_LAN
   Services	Any

4. Click Save.

   Here's an example:



Allow access to services on the head office firewall

1. Go to Administration > Device access.
2. Under Ping/Ping6, select VPN.
   Users can ping the firewall's IP address through the VPN to check connectivity.
3. Click Apply.

Check the connectivity

Check the VPN connectivity between the head office and the branch office.

• Head office firewall: Ping the branch office subnet. For example, on Windows, type the following command at the command prompt: ping 192.168.3.0
• Branch office firewall: Ping the head office subnet. For example, on Windows, type the following command at the command prompt: ping 192.168.2.0

Check the logs

The head office firewall's logs show that it's detected a NAT device in front of it.

The branch office firewall's logs show that it's detected a NAT device in front of the head office firewall.

More resources

• NAT traversal
