Configure Active Directory authentication

You can add existing Active Directory users to Sophos Firewall. Add an Active Directory server, import groups, and set the primary authentication method.

Introduction

You need to do as follows:

  • Add and configure an Active Directory server on the firewall.
  • Import AD groups using the Import group wizard.
  • Set the primary authentication method so that the firewall queries the Active Directory server first.

Overview

This overview explains how Sophos Firewall uses Active Directory to authenticate users and manage access control.

When an Active Directory user signs in to Sophos Firewall for the first time, they are automatically added to the default group. If the user's Active Directory group exists in Sophos Firewall they are added to that group.

When a user signs in to Sophos Firewall, it authenticates the user by verifying them against the list of users created during the integration with Active Directory. When the user is authenticated, Sophos Firewall communicates with Active Directory to get additional authorization data for access control.

If your Active Directory server is down, the authentication request returns a Wrong username/password message.

When you've configured multiple Active Directory servers, Sophos Firewall performs validation against your Active Directory servers in the order configured in the web admin console.

Add an Active Directory server

First, you add an Active Directory server that includes a search query.

You’ll need the following information to complete this task:

  • Domain name
  • NetBIOS domain
  • Active Directory server password

Check the properties of the Active Directory server. For example, on Microsoft Windows, go to Windows Administrative Tools.

Search queries are based on the domain name (DN). In this example, the domain name is sophos.com, so the search query is: dc=sophos,dc=com.

  1. Go to Authentication > Servers and click Add.
  2. Specify the settings.

    Note

    For settings not listed here, use the default value.

    Use the password configured on the Active Directory server.

    Option Description
    Server type Active directory
    Server name My_AD_Server
    Server IP/domain 192.168.1.100
    NetBIOS domain sophos
    ADS username administrator
    Password <AD server password>
    Domain name sophos.com
    Search queries dc=sophos,dc=com
  3. Click Test connection to validate the user credentials and check the connection to the server.

    Note

    When both synchronized user ID and STAS are configured, the authentication server uses the mechanism from which it receives the sign-in request first.

  4. Click Save.

Import Active Directory groups

Import Active Directory groups into the firewall and specify policies for them.

  1. Go to Authentication > Servers and click Import Import button.

    Import AD group

  2. In the Import group wizard, click Start.

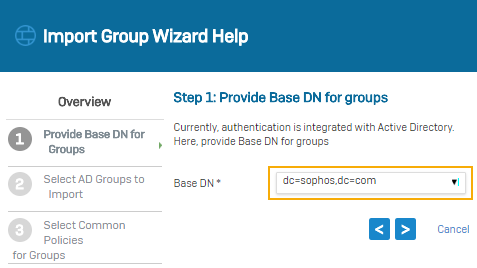

  3. Select the base DN for groups.

    Import Base DN in the import group wizard

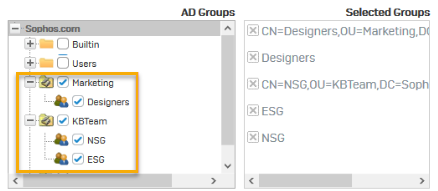

  4. Select the AD groups to import.

    Select AD groups to import

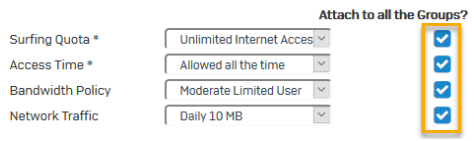

  5. Select common policies for groups.

    Select common policies for groups

  6. Review selection.

  7. View results.
  8. Go to Authentication > Groups and verify the recently imported groups.

Set primary authentication method

To query the Active Directory server first, set it as the primary authentication method. When users sign in to the firewall for the first time, they're automatically added as a member of the default group specified.

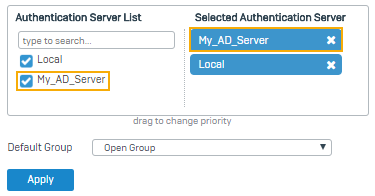

  1. Go to Authentication > Services.
  2. In the authentication server list under Firewall authentication methods, select My_AD_Server.
  3. Move the server to the first position in the list of selected servers.

    Authentication servers

  4. Click Apply.

Go to Authentication > Groups and verify the imported groups.
