You can control access to the management services of Sophos Firewall from custom and default zones using the local service ACL (Access Control List).
Local services are management services specific to the internal functioning of Sophos Firewall, such as web admin and CLI consoles, and authentication services. You can allow or block access to local services from Administration > Device access.
- Select the check boxes to allow access to these services from different zones. For more details about the services, go to Access to local services from zones.
- To only allow specific hosts and networks to access the services, scroll down to Local service ACL exception rule, and click Add.
Local service ACL: How device access works
The following conditions apply to local services:
- You can't control traffic to these services using firewall rules. You can only do so from Administration > Device access.
For custom zones, you can also allow or block access from Network > Zones.
To access a local service that shares a host's subnet, zone, or interface, you must select the zone. For example, to access the DNS service from the LAN zone when Sophos Firewall is the DNS server, you must select LAN for DNS.
- The default ports are used to provide access to these services, and the destination IP address is set to Sophos Firewall.
- You can change the default ports of some services, such as SSL VPN and user portal, from the corresponding settings pages. If you change the ports, we recommend that you don't use the SSL VPN port for other services. It allows access to the services from zones that you turned off here.

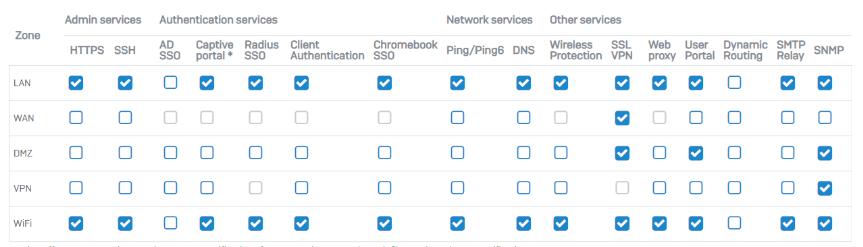

The default settings for the local service access control list are in the following image.
Administrative services and user portal: We do not recommend allowing access to the web admin console (HTTPS), CLI console (SSH), and the user portal from the WAN zone or over the SSL VPN port. If you must give access, we recommend using the best practices listed in the table in this section.
SSL VPN port: By default, all management services use unique ports. SSL VPN is set to TCP port 8443.
If you manually change the default ports, we strongly recommend that you use a unique port for each service. Using a unique port ensures that services are not exposed to the WAN zone even after you turn off access. Example: If you use port 443 for both the user portal and SSL VPN, the user portal will be accessible from the WAN zone even if you turn off WAN access from this page.
|Consoles||Secure access from WAN|
|Web admin console||Use Sophos Central. For more details, go to Sophos Central. |
|CLI console||Create a local service ACL exception rule allowing specific source IP addresses to access the console from the WAN zone. |
|User portal||For secure access from external networks, use VPNs and follow these best practices: |
Secure access based on user accounts:
Default admin password settings
The factory configuration of Sophos Firewall carries a default super administrator with the following credentials:
You can use these to sign in to the web admin console and the CLI. You must change the default password when you configure Sophos Firewall for the first time. Your password must not be a commonly used password or a dictionary word. Sophos Firewall compares the password you're trying to set with a database that includes commonly used passwords and dictionary words. If your password matches a password in the database, the firewall prompts you to change it.
Sophos Firewall offers stronger password protection for the default super administrator. To benefit from the protection, you must change the password if you're upgrading from 18.0 MR3 or earlier or 17.5 MR14. This is a one-time change.
Store the current password in a secure location. If you move to an earlier firmware version that uses the current password, you'll need it to sign in.
Multi-factor authentication (MFA) for default admin
You can set up MFA for the default admin account using either a hardware or software token.
- Turn on MFA for default admin and click Apply.
Select one of the following tokens for OTP:
- To use a hardware token, select Configure a hardware token and click Next.
- To use a software token, select Generate a software token and click Next.
To validate a hardware token:
Enter the following information:
Information Description Secret Enter a secret for the token. The following restrictions apply:
- Only hexadecimal characters.
- Even character count.
- Minimum of 32 characters.
- Maximum of 120 characters.
Description Enter a description for the token. Timestep Enter the timestep that matches the hardware token settings.
Enter the default admin password followed by the validation code shown on the hardware token, click Validate, and click Apply.
To validate a software token:
- Scan the displayed QR code with your chosen authentication app.
- Enter the default admin password followed by the validation code shown in the authenticator app and click Validate, then click Apply.
Public key authentication for admin
You can use these public keys for secure access to the CLI. You can add, edit, or delete SSH keys.
- Turn on Enable authentication to allow secure access to the CLI using an SSH key.
- To generate a public-private key pair, use SSH tools (example: PuTTYgen).
- Go to Administration > Device access, scroll down to Public key authentication for admin, and add the public key.
Share the private key with the administrator who needs to access the CLI.
To access the CLI, the administrator must enter the private key in the SSH tool (example: PuTTY).
You can also use this method to give secure access to Sophos Support for troubleshooting purposes.
