SD-WAN performance

You can see graphs showing the real-time performance of the gateways in your SD-WAN network.

To monitor the real-time performance of the gateways, go to Diagnostics > SD-WAN performance and select an SD-WAN profile.

Alternatively, go to Routing > SD-WAN profiles, select an SD-WAN profile, and under Status, click Historical performance.

You can see graphs showing each gateway's total connections and the amount of data transferred.

You can do as follows:

  • Click Reset data transfer and connection count to reset these counts.
  • Click Assigned weights for load balancing to see the load-balancing weights assigned to each gateway.

Graph showing total connections and data transfer

You can see graphs for latency, jitter, and packet loss for each gateway in the SD-WAN profile. You can filter the graphs by time (Live, 24h, 48h, Week, or Month).

Latency

The x-axis shows time.

The y-axis shows the latency in milliseconds.

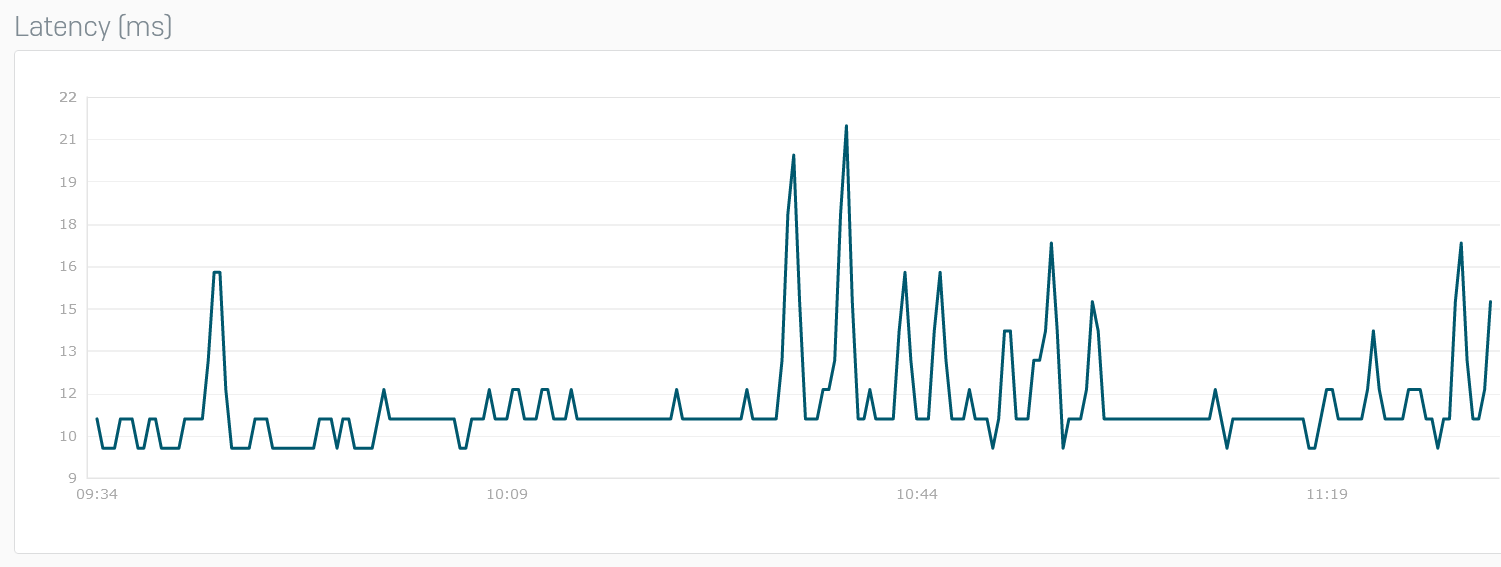

Graph showing latency for a gateway

Jitter

The x-axis shows time.

The y-axis shows the jitter in milliseconds.

Graph showing jitter for a gateway

Packet loss

The x-axis shows time.

The y-axis shows packet loss in percentage points.

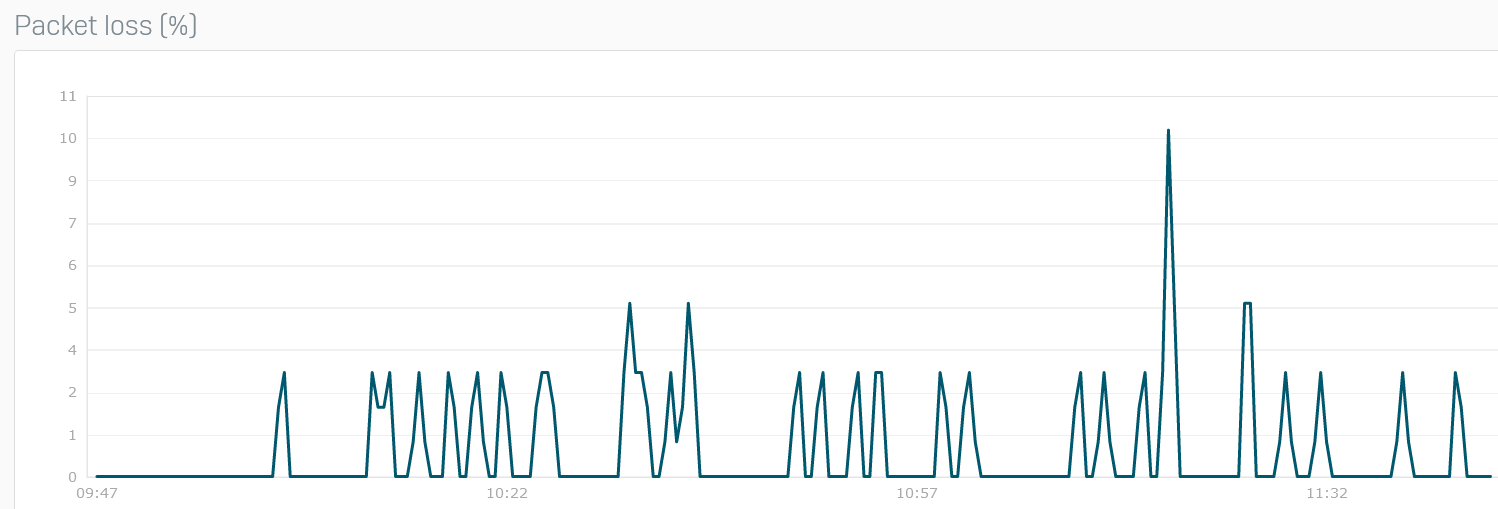

Graph showing the packet loss for a gateway
