Add multicast route
You can configure Sophos Firewall to forward multicast traffic. You need to configure multicast routes when traffic from a single source is routed to multiple receivers, for example video conferencing.
In this scenario, a client in the LAN zone behind Sophos Firewall is part of a multicast group. You assign the client an IP address of 227.0.0.100

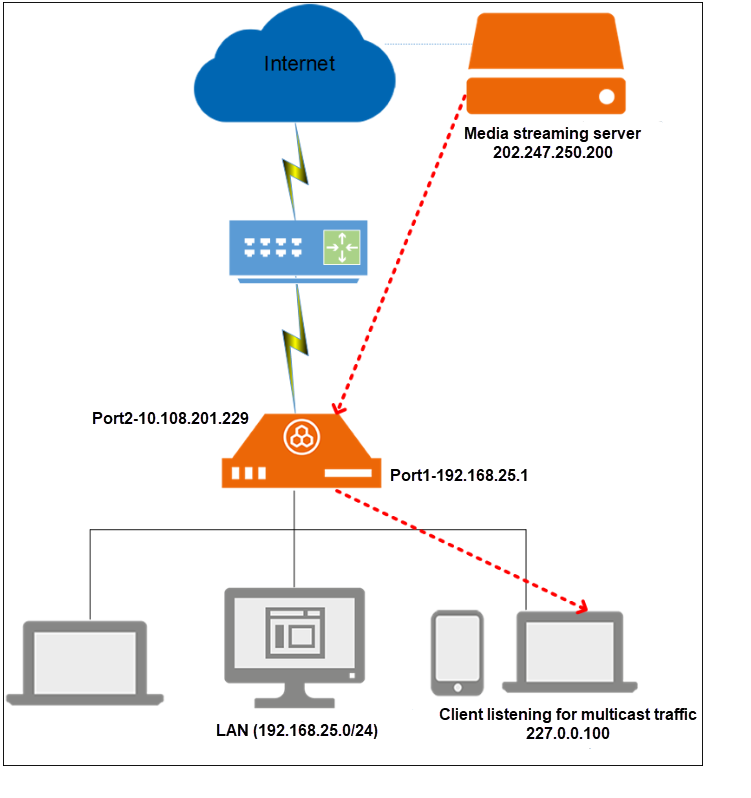

. It receives multicast traffic from an external media streaming server with the IP address, 202.247.250.200. You configure Sophos Firewall to forward multicast traffic from the external media server to the client listening for the multicast traffic, as shown in the following diagram:
Note
Multicast over SSL VPN isn't supported.
To add a multicast route, do as follows:
- Go to Routing > Static routing.
- Under Multicast forwarding setting, turn on Enable multicast forwarding.
- Under Manage multicast route, click Add.
-
Enter the multicast route details.

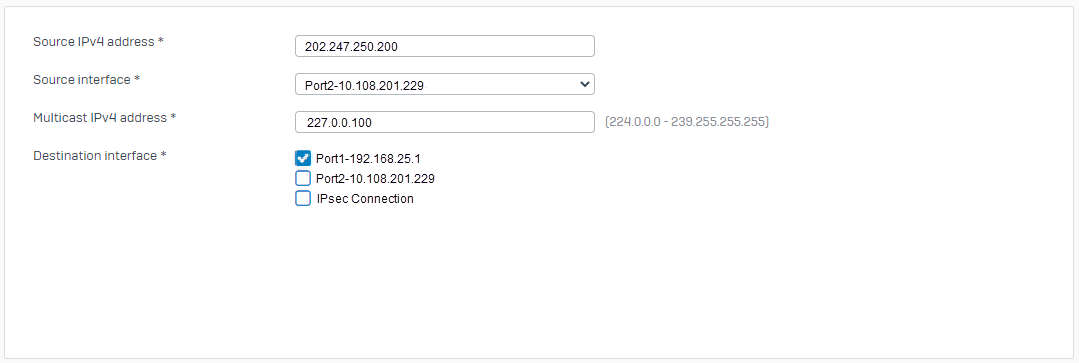

Option Description Source IPv4 address Specify the source IPv4 address. Source interface Select the source interface. Multicast IPv4 address Specify the multicast IPv4 address from the following address range: 224.0.2.0 to 239.255.255.255. Destination interface Select the destination interface from the available options. You can select more than one destination interface. Example settings:
-
Click Save.
