DSCP value
The firewall only marks outgoing IPv4 or IPv6 traffic with the Differentiated Services Code Point (DSCP) value configured in the firewall rule so upstream routers in the path can prioritize traffic. It doesn't classify the traffic for prioritization.
Behavior
The firewall's behavior regarding DSCP values is as follows:
- The firewall doesn't mark the DSCP value of reply traffic.
- The firewall doesn't mark traffic coming from the firewall itself.
- When incoming traffic already has a DSCP value, the firewall overwrites it with the DSCP value configured in the firewall rule.
DSCP values
| Decimal | DSCP | Description |
|---|---|---|
| 0 | Default | Best Effort |
| 8 | CS1 | Class 1 (CS1) |
| 10 | AF11 | Class 1, Gold (AF11) |
| 12 | AF12 | Class 1, Silver (AF12) |
| 14 | AF13 | Class 1, Bronze (AF13) |
| 16 | CS2 | Class 2 (CS2) |
| 18 | AF21 | Class 2, Gold (AF21) |
| 20 | AF22 | Class 2, Silver (AF22) |
| 22 | AF23 | Class 2, Bronze (AF23) |
| 24 | CS3 | Class 3 (CS3) |
| 26 | AF31 | Class 3, Gold (AF31) |
| 28 | AF32 | Class 3, Silver (AF32) |
| 30 | AF33 | Class 3, Bronze (AF33) |
| 32 | CS4 | Class 4 (CS4) |
| 34 | AF41 | Class 4, Gold (AF41) |
| 36 | AF42 | Class 4, Silver (AF42) |
| 38 | AF43 | Class 4, Bronze (AF43) |
| 40 | CS5 | Class 5 (CS5) |
| 46 | EF | Expedited Forwarding (EF) |
| 48 | CS6 | Control (CS6) |
| 56 | CS7 | Control (CS7) |
Example

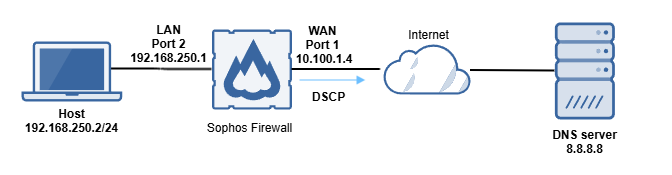

An ICMP echo request is sent from a host to a public DNS server with an IP address of 8.8.8.8. A firewall rule with a DSCP value of 26-Class 3, Gold (AF31) is applied to the outgoing traffic for the ICMP service.
The firewall rule configuration is as follows:
- Source zones: LAN
- Source networks and devices: Any
- Destination zones: WAN
- Destination networks: Any
- Services: ICMP
- DSCP marking: 26-Class 3, Gold (AF31)
Behavior

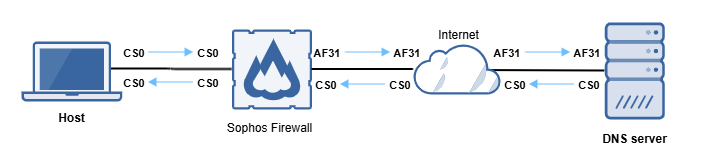

The firewall marks the DSCP field for the outgoing traffic. A packet capture on the firewall's WAN interface shows that the outgoing traffic is marked as DSCP: AF31. The upstream routers on the path then apply the DSCP value marked by the firewall.
Incoming traffic is marked as DSCP: CS0 (Default). This is expected behavior since the firewall rule marks the DSCP value only for outgoing traffic and not for reply traffic.
