Memory usage graphs

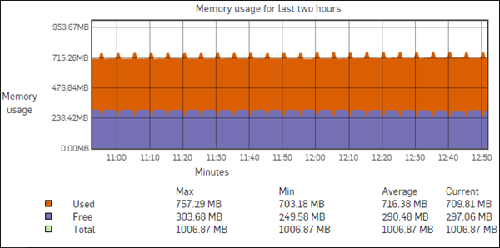

The Memory usage graph shows memory usage in megabytes (MB).
The x-axis shows minutes, hours, days, or months (depending on the time period selected).
The y-axis shows the amount of memory used (in MB).
Legend:
- Orange: Memory used
- Purple: Free memory
- Green: Total memory
